9 Channel DC12V 10A  Boxed Power Supply-CCTV
9 Channel DC12V 10A  Boxed Power Supply-CCTV
  • 9 Channel DC12V 10A  Boxed Power Supply-CCTV
  • 9 Channel DC12V 10A  Boxed Power Supply-CCTV

9 Channel DC12V 10A Boxed Power Supply-CCTV

    Unit Price: 20 USD
    Min. Order: 50 Bag/Bags

Basic Info

Model No.: STD-40T-120-12-9CH-NEW

Output Type: Multiple

Warranty: >2 Years

Output Power: 101 - 200W

Input Voltage: Full Range

Connection Mode: Series Switching Power Supply

Starting Mode: Self-excited Switching Power Supply

Voltage Regulating Mode: Frequency Modulation Type

Power Supplying System: Terminal Power Distribution Equipment

Energy Transmission: Two-way Transmission

Modulation System: PFAW

Certification: CE, RoHS, ISO, CCC, CB, FCC

Additional Info

Packaging: By customer

Port: Shenzhen,Huizhou

Product Description

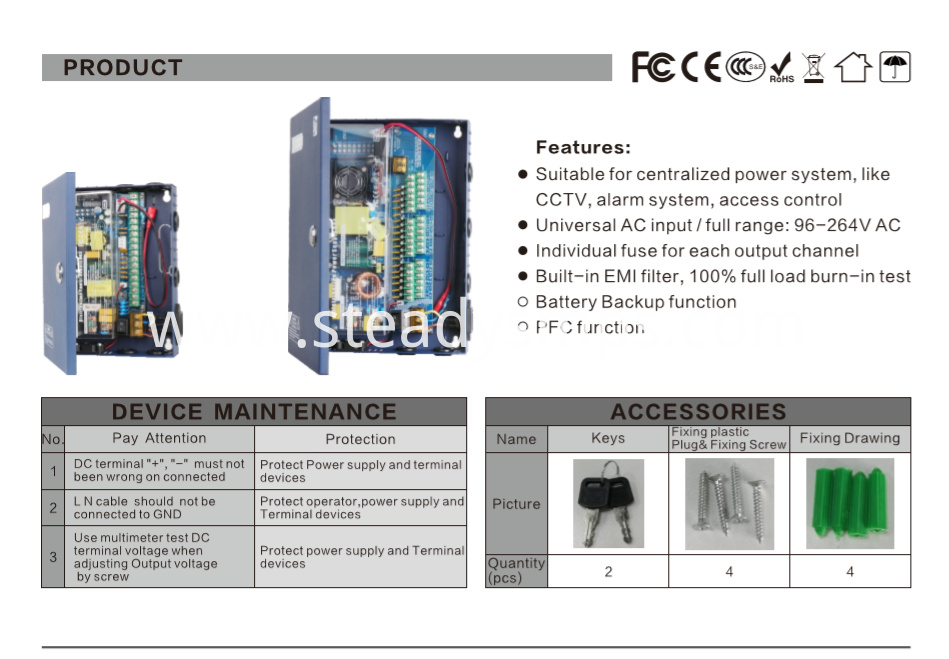

12 V 10 A DC 9 Channel power supply box for surveillance camera systems. Each channel is individually fused at 1.1 amp DC each. 10 Amp DC total output.Battery Backup function and PFC function is optional.

Power Supply 12V AC 10A Features


  • Universal AC input/Full range: 96-264V AC,47-63Hz;
  • Output voltage:DC12V;
  • Output current:8A/10A/12A/16A/20A/25A/32A;
  • Output Channels:8CH/9CH/12CH/16CH/18CH;
  • Voltage and current of each channel distributing evenly;
  • Output Voltage adjustable: DC 11-15V.

Power Supply 12V AC 5A PROTECTION FUNCTIONS

  • Built-in PFC(Power factor correction)circuits
  • Individual PTC fuse for each output channel.
  • Built-in EMI filter,100% full load burn-in test.
  • Short circuits protection
  • Over current protection
  • Over voltage protection
  • Low output ripple and noise
  • Power Supply 12Vdc 10A

Certification and Warranty
  • CE&FCC/EMC/ROHS
  • Warranty:3 years

Boxed Power Supply 24VAC Application


Widely apply for CCTV Camera, PTZ, IR Illuminators, Video Process Equipment,etc.Access Control Reader,Lock,Panel,etc.

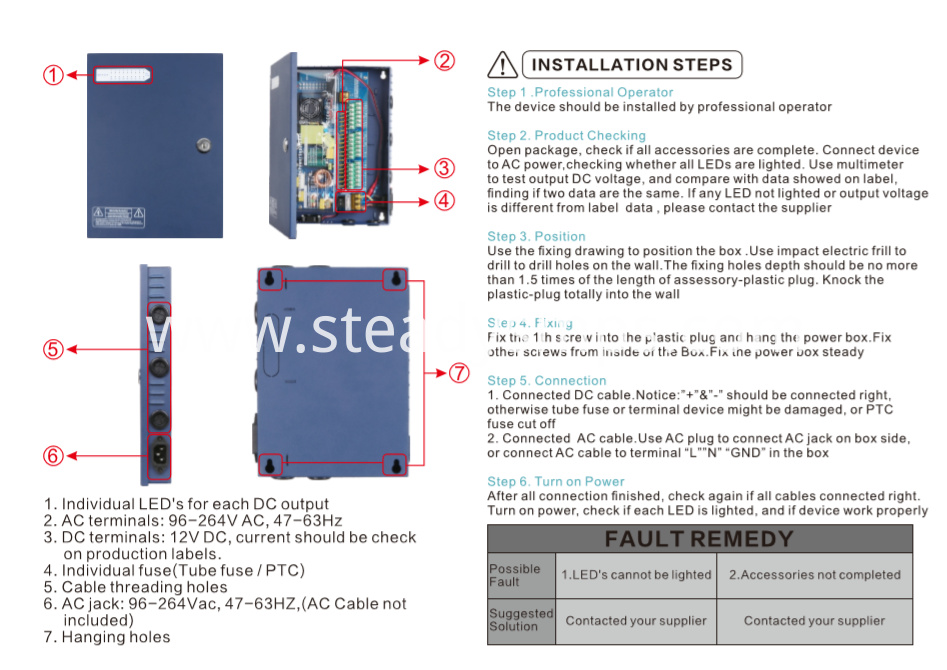

Boxed Power Supply UPS Connectiong Instructions:


power supply cctv

power supply cctv

CCTV power Supply

CCTV power Supply

  • About US

surveillance camera systems

  • Our Advantages:
1.Manufacturing Process

surveillance camera systems

2. Exhibition:

CCTV surveillance system

3.Certification:

CCTV surveillance system

4.Packing and Shipping:

CCTV surveillance system

  • Our Service :

1. All inquiries will be replied within 24 hours

2. Professional manufacturer,welcom to visit our website

3. OEM/ODM avaliable:
A.Print logo on our product;
B. Customized specification;

4. After Sales-Service:
A. All products will have 100% burn-in test and strictly quality test before shipping;
B. Fast Delivery: 3-7days for samples, 15-20 days for bulk production;


Looking for ideal 9 Channel Output Power Supply Box Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the 9 Way Boxed Power Supply-CCTV are quality guaranteed. We are China Origin Factory of 12V Cctv Distribution Power Supply Box. If you have any question, please feel free to contact us.

Product Categories : Boxed Power Supply > Boxed Power Supply CCTV
